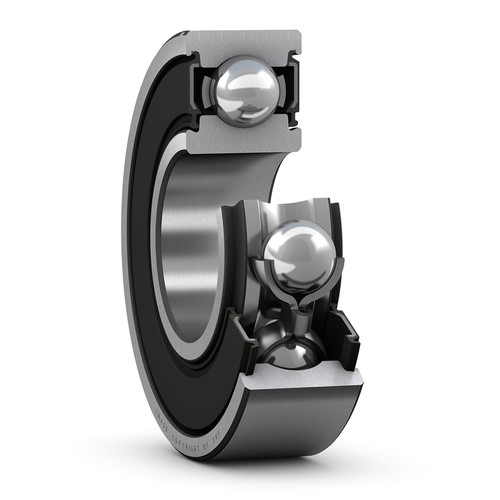

6200-ZRS1 SKF Bearing
Deep groove ball bearings
- 2RSL: NBR low-friction seal on both sides
- Popular item
- SKF Explorer
DIMENSIONS
10 mm Bore diameter
30 mm Outside diameter
9 mm Width
≈15.07 mm Recess diameter
≈24.72 mm Recess diameter
min.0.6 mm Chamfer dimension
ABUTMENT DIMENSIONS
min.14.2 mm Diameter of shaft abutment
max.15 mm Diameter of shaft abutment
max.25.8 mm Diameter of housing abutment
max.0.6 mm Radius of shaft or housing fillet
CALCULATION DATA
Basic dynamic load rating C
5.4 kN
Basic static load rating C0
2.36 kN
Fatigue load limit Pu
0.1 kN
Reference speed
56 000 r/min
Limiting speed
28 000 r/min
Minimum load factor kr
0.025
Calculation factor f0
13
MASS
Mass bearing
0.032 kg
TOLERANCE CLASS
Dimensional tolerances
P6
Radial run-out
P5
